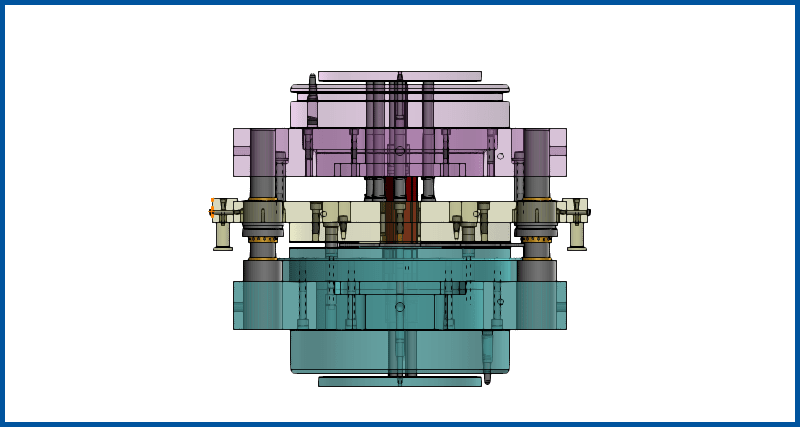

(55:29) Starting with a LogoPress tool template that we had previously created for a 630 ton Feintool press, a “fixed punch” fineblank die is mostly completed in about an hour. Finalizing the drawings would take another hour or two, noting that most of them were being automatically created/updated in the background as we were modeling the die.

(117 seconds) The automation of LogoPress quickly creates the tool assembly and drawings according to the selected tool template. With the parametrics of SolidWorks, changes made to the tool assembly are automatically updated in the 2D drawings.
