95 Minutes - Lamination Die Design for Stator and Rotor Including BOM

▶

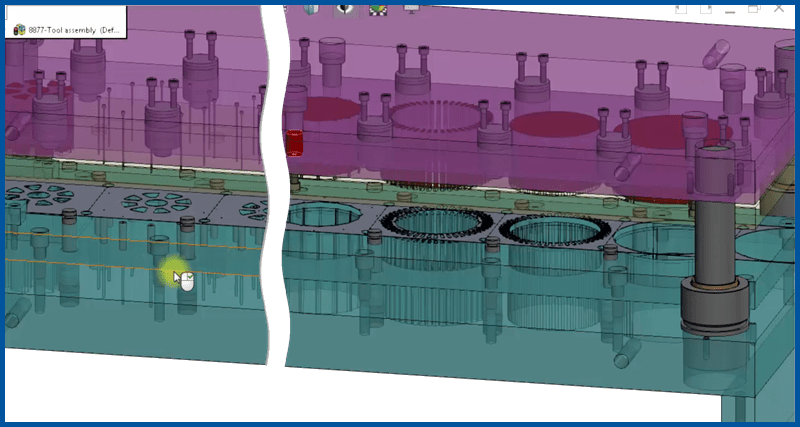

(95 minutes) The strip layout along with the modeling of the die for an 8 station Lamination die design that produces both a Stator and a Rotor is completed. Interference checking is done using LogoPress DIE DEBUGGER™, the Bill of Materials (BOM) is automatically generated and kept up to date in real time, and one of the detail drawings is created.
(LogoPress die design software includes DIE DEBUGGER™).
